Tablet dies and punches are precision-engineered metal tools used in rotary tablet press machines to compress powder or granules into tablets. Every pharmaceutical tablet, vitamin supplement, ayurvedic medicine, and candy tablet you have ever seen was formed using a set of dies and punches.
This guide explains what tablet dies and punches are, how they work, the different types available, what materials they are made from, and how to choose the right tooling for your application.

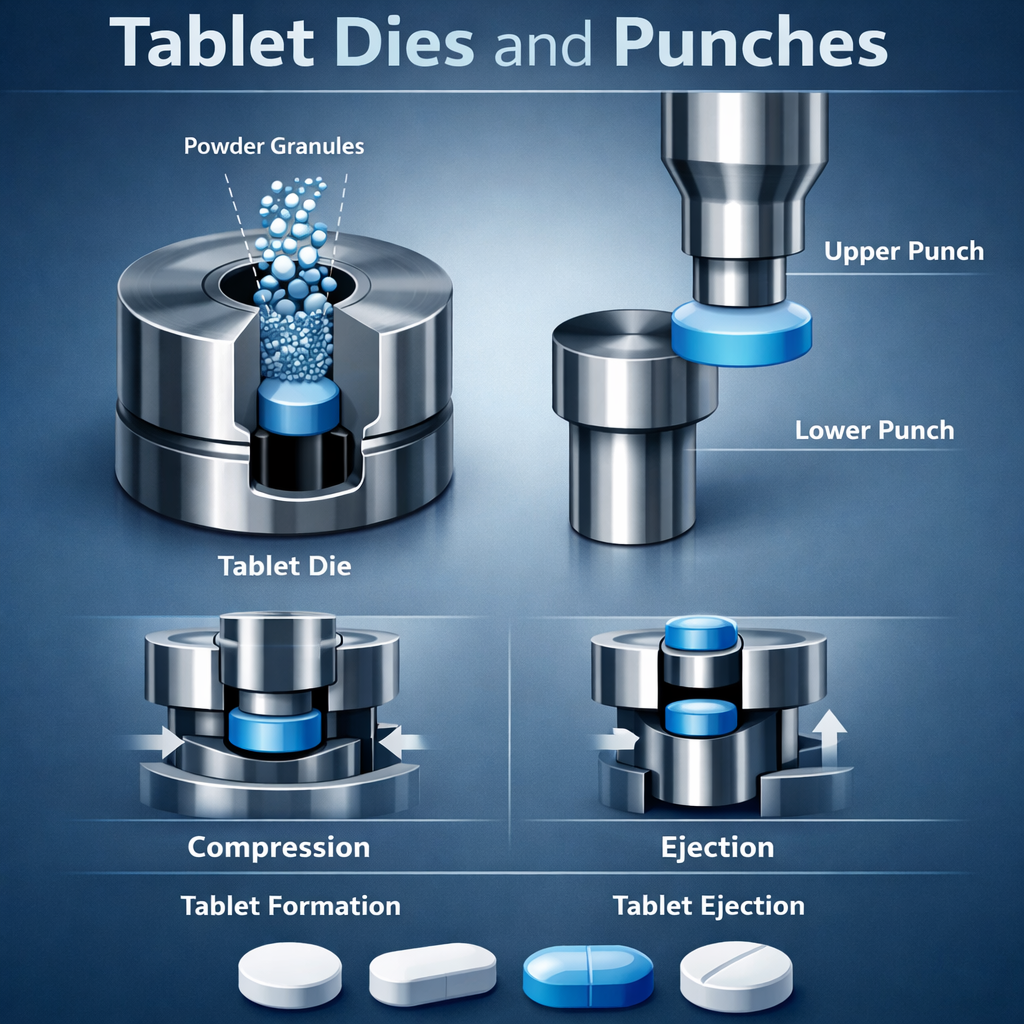

How Tablet Dies and Punches Work
A tablet press machine uses three components to form a tablet:
Die — a cylindrical metal ring with a precisely bored hole. The die defines the tablet's outer diameter and shape.
Upper punch — a metal rod that enters the die from above and applies compression force to the powder.
Lower punch — a metal rod that enters the die from below, supports the powder during compression, and ejects the finished tablet.
The Tablet Compression Cycle:
This cycle repeats thousands of times per minute on a rotary tablet press. A typical press has 20-60 stations (sets of dies and punches) arranged in a circle on a rotating turret, producing thousands to hundreds of thousands of tablets per hour.
Parts of a Tablet Punch
A tablet punch consists of several precisely machined sections:
Upper and Lower Punch Components:
Key Dimensions:
Barrel diameter — must match the turret bore (25.4mm for D tooling, 19.0mm for B tooling, 19.0mm for BB tooling)
Overall length — must match the press specifications exactly
Tip diameter — defines the tablet diameter
Cup depth — determines the tablet's surface curvature
Parts of a Tablet Die
A tablet die is simpler than a punch but equally critical:
The die bore is the most critical dimension. It must be ground to exact tolerances — typically within 0.01mm — to ensure consistent tablet diameter and smooth punch movement.
Types of Tablet Dies and Punches
By Tooling Standard:
By Tablet Shape:
Round — the most common shape, available in flat, concave, and beveled profiles
Capsule — elongated shape for easier swallowing
Oval — smooth elliptical profile
Geometric — triangle, square, pentagon, hexagon
Novelty — star, moon, heart, animal shapes (common in confectionery)
Custom — any shape designed for brand differentiation or functional purpose
By Configuration:
Single-tip — one tablet per punch per compression cycle (standard)
Multi-tip — multiple tablets per punch per cycle (2-tip, 3-tip, 4-tip or more). Increases output by up to 80% without additional presses.
Embossed — text, logos, or score lines engraved on the punch tip
Materials Used for Tablet Dies and Punches
The material determines tooling hardness, wear resistance, corrosion resistance, and lifespan:
OHNS (Oil Hardened Non-Shrinking Steel) is the most commonly used material for tablet tooling worldwide. It offers a good balance of hardness, machinability, and cost.
HCHC (High Carbon High Chromium / D3 Steel) is the premium choice for formulations containing abrasive ingredients like calcium, iron, or mineral compounds. It lasts significantly longer than OHNS in abrasive applications.
Surface Coatings for Tablet Punches
Coatings are applied to punch tips to improve performance:
How to Choose the Right Tablet Dies and Punches
Selecting the right tooling requires considering several factors:
Step 1: Determine Your Tooling Standard
Check your tablet press manual. Most standard presses use D tooling (the LARGEST standard at 38.10mm die OD). B tooling (MEDIUM at 30.16mm) is for specific press models. BB tooling (SMALLEST at 24mm) is for compact presses. The press manufacturer specifies which standard is compatible.
Step 2: Define Your Tablet Shape and Size
What shape do you need? (round, capsule, oval, custom)
What diameter and thickness?
Do you need embossing (logo, text, score lines)?
Step 3: Select the Right Material
Standard formulations → OHNS
Abrasive formulations (calcium, iron, minerals) → HCHC
Corrosive formulations → EMMKAY Special Steel
Chipping/breakage issues → S7
Step 4: Consider Coatings
Sticking problems → DLC or chrome coating
Abrasive wear → TiN coating
Corrosion concerns → CrN coating
Step 5: Choose Configuration
Standard production → Single-tip
High-volume production → Multi-tip
Non-round shapes → Keyed punches
Tooling Standards — TSM vs EU
Two international standards define tablet tooling dimensions:
In practice, TSM and EU tooling are interchangeable for most tablet presses. Always confirm with your press manufacturer if you are switching between standards.
How Long Do Tablet Dies and Punches Last?
Tooling lifespan varies based on several factors:
Typical Lifespan Ranges:
OHNS tooling: 3-5 million tablets
HCHC tooling: 5-10 million tablets
With TiN coating: additional 30-50% life extension
Replace tooling when tablet weight variation exceeds specifications, visual inspection shows tip wear, or die bore measurements exceed tolerance.
Conclusion
Tablet dies and punches are the foundation of tablet manufacturing. The right tooling — correct standard, shape, material, and coating — directly determines your tablet quality, production efficiency, and operating costs. Understanding these fundamentals helps you make informed decisions when ordering tooling and troubleshooting production issues.
EMMKAY INDUSTRIES has been manufacturing precision tablet dies and punches since 1983. Contact us for expert guidance on selecting the right tooling for your application.
